Z80 SBC – Zapple

Posted by musovern on Jun 14th, 2018 in Single Board Computers, Z80 SBC - Zapple | 0 comments

This is a Z80 single board computer that I made some years ago, After reading this excellent book “Build Your Own Z80 Computer Book” by Steve Ciarcia.

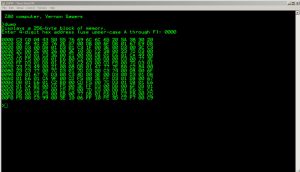

I have made a  “Zapple like Monitor” it’s a work in progress.

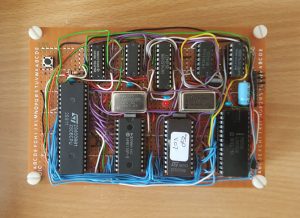

It’s built on a breadboard at the moment. I’ll Design a PCB at some time in the future and expand the RAM to 64k and ROM Monitor to 32k.















System features:

CPU: Z80 running at about 1.997Mhz
ROM: 2K Monitor
RAM: 2K
SERIAL: Intel8251A Uart
